- BDV Full Form: BDV stands for Breakdown Voltage, the maximum voltage transformer oil can withstand without breakdown.
- Importance of BDV Testing: Regular BDV tests ensure transformer reliability, detect moisture or contamination, and prevent insulation failure or equipment fires.
- Minimum BDV Value: According to IEC standards, transformer oil must have a minimum BDV of 30 kV, regardless of transformer voltage rating.
- Transformer Oil BDV Value: A BDV above 30 kV indicates good insulating strength; new oil usually shows BDV above 70 kV, while lower values suggest contamination, aging, or moisture.
- BDV Test Procedure: Determined using a high-voltage BDV tester, following sample collection, electrode gap adjustment, voltage application, and averaging multiple readings.
- Factors Affecting BDV: Moisture, aging by-products, particles, and pressure can significantly impact the BDV value of transformer oil.
- BDV Testing Standards: Common standards include IEC 60156, ASTM D877/D1816, and IS 6792.
Regular BDV testing of transformer oil is essential for predicting transformer life, preventing insulation failure, and maintaining reliability. This test is relevant for transformers of all voltage ratings, including 11 kV, 33 kV, and 132 kV, as the minimum required BDV remains consistent.
By understanding the BDV value of transformer oil and using standard testing procedures, maintenance teams can ensure operational safety and prevent costly failures.
What is BDV of Transformer Oil?
The BDV of transformer oil is the breakdown voltage of transformer oil. The BDV or dielectric strength of oil is the maximum voltage withstand capacity of the oil without breakdown. BDV test of transformer oil is very important for the trouble-free operation of the transformer. Therefore, periodic testing of the transformer oil BDV is compulsory to ensure its health.
As per IEC, the minimum BDV of transformer oil should be 30 KV as per transformer oil BDV test standard.
Importance of Transformer Oil BDV Test
The transformer oil is used in the transformer for insulation and cooling purposes. The different insulating materials have different dielectric strengths. The insulating material should sustain the voltage up to its dielectric strength.
If the voltage is increased above the specified dielectric strength of the insulating material, the current starts flowing through it, and eventually, the material gets permanently punctured.
The transformer oil is hygroscopic, i.e., it tends to absorb moisture quickly. The dielectric strength of the oil deteriorates with the absorption of the moisture. That is why the breather filled with silica gel (Moisture absorbent material) is used in the transformer to trap external moisture during breathing in silica gel.
Related Post: Transformer Oil – Testing, Types, and Properties
The core and winding of the power transformer are submerged in transformer oil. The heat generated inside the transformer due to iron loss and copper loss needs to be dissipated outside the transformer to limit the temperature to its safe limit.
The heat generated inside the transformer is transferred to oil, and the oil transfers the heat to the outer tank body, and the temperature is dissipated in the atmospheric air. The quality of the transformer oil is of the utmost importance for the reliable operation of a filled transformer.
Related Post: Copper loss in Transformer and How to Calculate it
The reliability of the transformer can be ensured if all the parameters of the transformer oil are as per the standard.
The one very important parameter – The dielectric strength or breakdown voltage (BDV) of the oil must be periodically checked to ensure a trouble-free operation of the transformer.
The dielectric breakdown voltage test is a quick and easy way of determining the contamination in the transformer oil. The water is the major contaminant.
However, other contaminants like conductive particles, dirt, debris, insulating particles, and by-products of oxidation and aging of the transformer oil can deteriorate the dielectric strength of the mineral-insulating transformer oil.
Purpose of BDV Test of Transformer Oil
The breakdown voltage test (BDV test) is useful for;
- Predicting the remaining life of the transformer
- Enhancing operational safety
- Preventing equipment fires
- Maintaining transformer reliability
Minimum BDV of Transformer oil
As per IEC standards, the minimum breakdown voltage of transformer oil should be not less than 30 KV. The BDV of transformer oil does not depend on the voltage rating of the transformer. The minimum transformer BDV value for either 11 KV, 22 KV, 33 KV, or 132 KV is the same. The minimum transformer oil BDV value should be 30 KV.

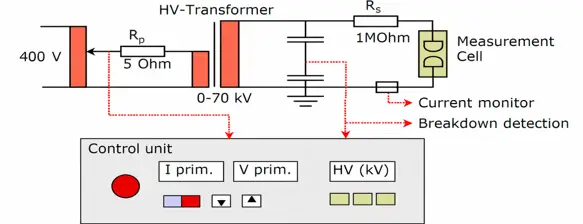

What is BDV Tester?
The sample is taken out from the transformer tank, and the BDV of the oil is checked by the BDV tester. The BDV test kit is basically a high-voltage unit, and the voltage can be regulated from 0–70 KV. The BDV tester has two electrodes separated by a distance of 2.5 mm ( 4.00 mm separation units are also available). The IEC 60156 standard specifies a gap of 2.5 mm between the electrodes.
How to Determine Transformer Oil BDV Value?
As per the Oil BDV Test Procedure, the transformer oil sample should have a minimum temperature of 27°C.

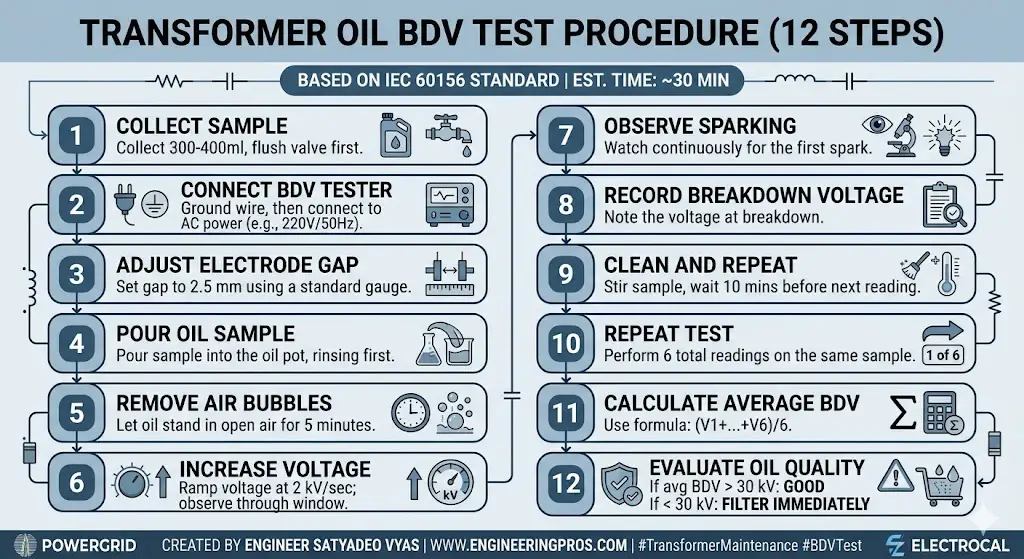

Test Procedure of Transformer Oil BDV
To ensure reliable transformer operation, follow these steps to determine the BDV (breakdown voltage) of transformer oil accurately.
Step-1: Collect Sample
Collect the 300-400 ml oil of transformer oil from the bottom valve of the transformer in a glass or plastic vessel.
Step-2: Connect BDV Tester
Connect the BDV tester to a grounding wire and then to 220VAC, 50Hz, or 110VAC, 60Hz, as specified by the vendor. The high-voltage BDV tester must be properly earthed before use.
Step-3: Adjust Electrode Gap
Adjust the air gap between the electrodes to 2.5 mm, as per IEC 60156 standard.
Step-4: Pour Oil Sample
Pour the oil sample into the oil pot of the BDV testing machine.
Step-5: Remove Air Bubbles
Keep the oil pot in open air for 5 minutes so that any air bubbles escape. Disturb the vessel gently to ensure homogeneous distribution of impurities.
Step-7: Increase Voltage
Increase the voltage at a rate of 2 KV/sec and observe the oil through the inspection window.
Step-8: Observe Sparking
Continuously monitor the oil sample through an inspection window and note the voltage at which sparking occurs.
Step-9: Record Breakdown Voltage
The voltage at which sparking is observed is the breakdown voltage (BDV) of the transformer oil.
Step-10: Clean and Repeat
Remove the cup’s safety lid, stir the oil with a small wooden stick, and wait 10 minutes before taking the next reading.
Step-11: Repeat Test
Repeat steps 6,7, 8,9, and 10 for the same sample six times, recording each BDV reading.
Step-12: Calculate Average BDV
Calculate the average BDV from all recorded readings to determine the overall dielectric strength of the oil.
Step-13: Evaluate Oil Quality
If the average BDV is above 30 KV, the transformer oil is considered good for operation.
Important Note:
Testing immediately after oil filtration may give false high BDV readings due to elevated temperature. Always cool the oil to 27°C before testing.
Template for BDV Test Report for Transformer Oil
Interpretation of Oil BDV Test Results
- New Oil: New oil usually has a BDV value above 70 kV.
- In-service Oil: BDV value over 30 kV shows high insulating strength.
- Low BDV values (less than 30 kV): It indicates contamination, aging, or moisture.
Factors Affecting BDV Value of Transformer Oil
The main factors affecting the breakdown voltage of insulating oil are as follows.
- The water is the major contaminant in transformer oil. Moisture delivers charge carriers and, therefore, decreases the dielectric withstand strength of the oil.
- Aging by-products such as acids also deliver charge carriers through dissociation. Additionally, they are surface-active, decreasing the surface tension. Thus, they support bubble evolution following a decreased dielectric strength.
- Pressure influences bubble evolution, too. With increasing pressure, the breakdown voltage increases. For pressures below the atmospheric pressure, the breakdown voltage should decrease.
- Dry particles of cellulose fibers decrease the breakdown voltage since they support bubble generation.
Transformer Oil BDV Test Standards
