DC Generator Equations and Formulas

Learn about DC Generator Equations and Formulas, including shunt and series generator parameters, EMF equation, armature and field current equations, power calculations, and efficiency.

DC generator converts mechanical energy into DC electrical energy. A DC generator has two main parts a stator and a rotor. The stator holds the field winding of the machine and produces flux, while the rotor is the rotating part that acts as the armature. This article provides a detailed explanation of DC Generator Equations and covers various parameters like terminal voltage, currents, efficiencies, power of shunt, and series generators.

DC Generator Equations

The EMF (Electromotive force) generated in a DC generator is a function of its construction and speed. The EMF generated per conductor in a DC generator is:

EMF Equation for DC Generator

Where:

  • E: Generated EMF
  • P: Number of poles
  • ϕ: Flux per pole (in Weber)
  • N: Speed of the armature (RPM)
  • Z: Total number of armature conductors
  • A: Number of parallel paths in the armature

The number of parallel paths(A) in lap winding and wave winding are equal to the number of poles(P) and 2, respectively. The DC generator equation(1) can be modified for lap winding as given below.

EMF Equation for DC Generator considering lap winding

The DC generator equation(1) can be modified for wave winding as given below.

EMF Equation for DC Generator considering wave winding

The generalized DC generator equation is,

generalized DC generator equation

Torque Equation for DC Generator

Terminal Voltage of DC Generator

The terminal voltage of a DC generator refers to the voltage available at the output terminals of the generator.

Series DC Generator

In a series generator, the field winding is connected in the series with the armature winding, and the entire armature current flows through the field.

Terminal Voltage equation of  Series DC Generator

Where:

  • Vt​: Terminal voltage
  • E: Generated EMF
  • Ia​: Armature current
  • Ra​: Armature resistance
  • Rs​: Series field resistance

Shunt DC Generator

The field windings are connected in parallel (shunt) with the armature winding in a shunt generator. The terminal voltage of a shunt generator is given by:

Terminal Voltage equation of  Shunt DC Generator

Where:

  • Vt​: Terminal voltage
  • E: Generated EMF
  • Ia: Armature current
  • Ra: Armature resistance

Armature Current of DC Generator

When the load is connected to a generator the entire current flows through the armature is known as the armature current.

Series DC Generator

The armature current of a series DC generator is,

Armature Current equation of Series DC Generator

Shunt DC Generator

The armature current of a shunt DC generator is,

armature current equation of  Shunt DC Generator

Where,

  • Ish​: Shunt Field Current
  • IL: Load Current

Field Current of DC Generator

The current flowing in the field winding that produces magnetic flux is called field current.

Series DC Generator

The field winding is connected in the series with the armature winding in the series DC generator, therefore the field current equals the armature current.

Field Current equation of  Series DC Generator

Shunt DC Generator

field current equation of Shunt DC Generator

Where Rsh is the shunt field winding.

The total electrical power generated in the armature is:

Power Generated in Dc generator

The power delivered to the external load is:

Load Power (Output Power) of Dc generator

Where:

  • PL​: Load power
  • Vt: Terminal Voltage
  • IL: Load Current

The difference between generated power and load power accounts for losses in the generator.

The mechanical input power to the generator is:

Input Power of DC generator

Where

  • ω is the angular speed of the armature
  • T is the torque applied

The power converted from mechanical to electrical form is:

converted power  of Dc generator

Efficiency of DC Generator

The efficiency of a DC generator is a measure of how effectively it converts mechanical input power into electrical output power. The ratio of the output power to the input power of a DC generator is known as the efficiency of the DC generator.

efficiency of Dc geneartor

Mechanical Efficiency

The mechanical efficiency accounts for the losses in the mechanical system. The mechanical efficiency of a DC generator is defined as the proportion of the mechanical power converted in the armature to the total mechanical power supplied to the generator. Mathematically, it is expressed as:

Mechanical Efficiency  formula of DC generator

Electrical Efficiency

The electrical efficiency of a DC generator is defined as the ratio of the electrical output power to the power developed in the armature.

Electrical Efficiency formula of DC generator

Overall Efficiency:

The overall efficiency of the DC generator is equal to the ratio of output electrical power to the input mechanical power.

Overall Efficiency formula of DC generator

Mechanical input power equals the sum of output electrical power and losses. We can write the equation(17) as,

overall efficiency formula of dc generator taking output power and losses

Maximum Efficiency

The maximum efficiency occurs when variable losses (copper losses in field and armature windings) equal constant losses (core and mechanical losses).

maximum efficiency condition of DC generator

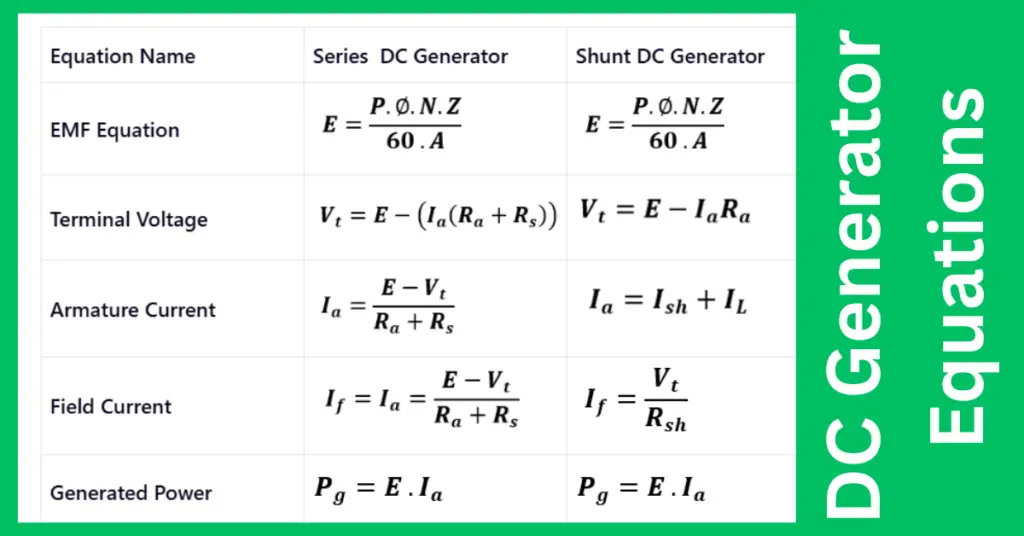

Summary: DC Generator Equations

Conclusion

Understanding the key equations and parameters of DC generators, such as terminal voltage, currents, power, and efficiency, is important for designing and analyzing these machines effectively.
